What is an EDFA and why is it important?

In the ever-evolving landscape of optical communication, the demand for efficient, high-capacity data transmission has propelled the development of advanced technologies. The global expansion of fiber optic networks—driven by 5G, cloud computing, and internet streaming—has underscored the critical role of the Erbium-Doped Fiber Amplifier (EDFA). This guide explores the definition, working principles, design, applications, advantages, challenges, and future trends of the EDFA, providing a detailed resource for telecom engineers, network designers, and professionals sourcing solutions from CommMesh. The analysis is rooted in current industry insights to offer a thorough understanding of this cornerstone technology.

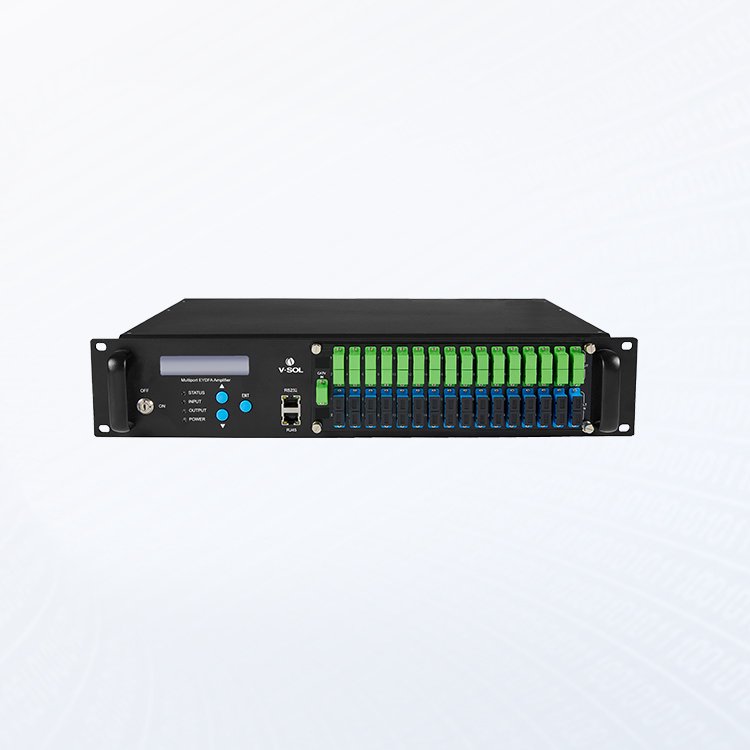

Introduction to EDFA

The Erbium-Doped Fiber Amplifier (EDFA) is an optical amplifier that boosts light signals directly in the fiber optic domain, eliminating the need for electrical conversion. Introduced in the late 1980s, EDFAs leverage the optical properties of erbium-doped silica fiber to amplify signals in the 1530–1565 nm wavelength range, known as the C-band, which is ideal for long-haul telecommunications. As fiber optic networks span millions of kilometers globally by 2025, EDFAs are indispensable for maintaining signal strength over distances where attenuation (typically 0.2 dB/km) would otherwise degrade performance. This technology underpins the backbone of modern internet infrastructure, supporting data rates from 10 Gbps to 400 Gbps.

Working Principles of EDFA

The EDFA operates by amplifying light through stimulated emission, a process rooted in quantum mechanics and erbium’s unique energy levels.

Basic Mechanism

An EDFA consists of a length of optical fiber doped with erbium ions (Er³⁺), typically 10–30 meters long, pumped with light from a laser source (e.g., 980 nm or 1480 nm) to excite the erbium atoms. When a weak signal (e.g., 1550 nm) enters the doped fiber, the excited erbium ions release energy via stimulated emission, amplifying the signal. The process occurs without converting the signal to an electrical form, preserving its integrity.

Energy Levels and Pumping

Erbium ions have energy levels that allow efficient amplification in the C-band. The pump laser raises electrons from the ground state (⁴I₁₅/₂) to a higher energy state (e.g., ⁴I₁₁/₂ at 980 nm or ⁴I₁₃/₂ at 1480 nm). These electrons decay to a metastable state, where they are stimulated by the incoming signal to emit photons at the signal wavelength, amplifying it. The gain depends on pump power, typically 100–500 mW, and erbium concentration (100–1000 parts per million).

Gain and Noise Characteristics

EDFA gain can reach 20–40 dB, sufficient to compensate for 20–40 km of fiber loss (0.2 dB/km × 100–200 km). However, this amplification introduces noise, primarily Amplified Spontaneous Emission (ASE), which contributes to a noise figure of 4–6 dB. The gain flatness (variation <1 dB across the C-band) is critical for multi-channel systems.

Design and Components

The EDFA’s design is optimized for integration into fiber optic networks.

Core Components

• Erbium-Doped Fiber (EDF): The active medium, with a core doped with erbium ions, typically 5–10 μm in diameter.
• Pump Laser: A semiconductor laser (980 nm or 1480 nm) provides the energy, with output power of 100–500 mW.
• Wavelength Division Multiplexer (WDM): Combines the pump and signal light into the EDF.
• Isolators: Prevent back reflections, ensuring unidirectional amplification.
• Optical Filters: Reduce ASE noise, improving signal-to-noise ratio (OSNR).

Configurations

• Forward Pumping: Pump and signal travel in the same direction, offering lower noise (4 dB) but limited gain.
• Backward Pumping: Pump and signal travel oppositely, providing higher gain (40 dB) but increased noise (6 dB).
• Bidirectional Pumping: Combines both for balanced gain (30 dB) and noise (5 dB), common in long-haul systems.

Technical Specifications

EDFA operates in the 1530–1565 nm C-band, with an optional L-band (1565–1625 nm) extension using thulium co-doping. Gain bandwidth is 30–40 nm, supporting 40–80 DWDM channels at 50 GHz spacing. Power consumption ranges from 10–50 W, depending on configuration.

Applications of EDFA

EDFA’s versatility drives its widespread use across multiple sectors.

Long-Haul Optical Networks

EDFA amplifies signals every 80–100 km in transcontinental fiber links (e.g., 10,000 km submarine cables), maintaining 10–100 Gbps data rates with <0.2 dB/km loss.

Metropolitan Area Networks (MAN)

In urban fiber rings, EDFAs boost 10 Gbps signals over 50–100 km, supporting 5G backhaul and enterprise connectivity.

Cable Television (CATV)

EDFA enhances analog and digital TV signals in HFC networks, delivering 100+ channels with low distortion over 50 km.

Research and Sensing

Used in distributed fiber sensing (e.g., DAS) and quantum communication, EDFAs provide gain for weak signals over 1000 km with 30 dB OSNR.

Advantages of EDFA

High Gain

With 20–40 dB amplification, EDFA compensates for 100–200 km of fiber loss, reducing the need for repeaters by 50%.

Wide Bandwidth

The 35 nm C-band supports 80 DWDM channels, enabling terabit-scale capacity without additional amplifiers.

Low Noise Figure

A 4–6 dB noise figure preserves signal quality, critical for long-haul systems where OSNR must exceed 20 dB.

Comparative Advantages

Compared to semiconductor optical amplifiers (SOAs), EDFAs offer 10 dB higher gain and 5 dB lower noise, though SOAs are cheaper ($100 vs. $1000) for short distances.

Challenges and Limitations

Gain Flatness

Gain variation (>1 dB) across the C-band can cause channel imbalance, requiring gain-flattening filters that add $200–$500 per unit.

Nonlinear Effects

High pump power (500 mW) can induce four-wave mixing, increasing bit error rates (BER) by 10⁻³ in dense systems.

Thermal Management

Operating at 10–50 W, EDFAs require cooling, adding 5–10% to power costs in tropical climates.

Comparative Limitations

Raman amplifiers offer broader bandwidth (100 nm) but cost 50% more and require complex pump setups, making EDFAs more practical for standard deployments.

Future Trends and Innovations

Extended Bandwidth

L-band and C+L band EDFAs (1530–1625 nm) will support 160 channels by 2027, doubling capacity to 192 Tbps.

Energy Efficiency

New designs with 980 nm pumps reduce power to 5 W, cutting costs by 20% in 2025 trials.

Integration with 6G

EDFA will amplify terahertz signals (0.1–1 THz) for 6G fronthaul, with prototypes achieving 1 Tbps over 100 km.

Comparative Future Outlook

While Raman amplifiers may challenge EDFA in niche applications, EDFA’s cost-effectiveness and maturity ensure its dominance through 2030.

Conclusion

The EDFA is a vital optical amplifier, enhancing signal strength in long-haul, metro, CATV, and sensing networks with 20–40 dB gain and low noise. Despite challenges like gain flatness and thermal issues, its advantages in bandwidth and efficiency make it indispensable in 2025’s fiber optic ecosystem. For advanced EDFA solutions, explore CommMesh.
