What Are Fiber Optic Splice Closures FOSC

In the fast-evolving world of fiber optic networks, where FTTH connections surpass 2 billion globally and 5G/50G-PON deployments accelerate, one component quietly ensures long-term reliability: the Penutupan Sambatan Gentian Optik, commonly abbreviated as FOSC.

A FOSC is a protective enclosure designed to house, organize, and environmentally seal optical fiber splices, providing mechanical protection, water resistance, and easy re-entry for maintenance. Without reliable FOSC, even the highest-quality fiber cable is vulnerable to moisture, rodents, pressure, and temperature extremes — leading to costly outages.

This definitive guide explores everything about FOSC in 2025: what they are, why they matter, the major types (including dome/vertical vs horizontal/inline), detailed comparisons, installation considerations, and why the latest MST Boxes (Multiport Service Terminals) represent the cutting-edge evolution of FOSC technology.

Whether you are a telecom operator, network engineer, contractor, or procurement manager, this article — brought to you by CommMesh, a leading manufacturer of traditional FOSC and innovative MST solutions — will equip you with the knowledge to choose the perfect closure for your project.

What Is a Fiber Optic Splice Closure (FOSC)?

A Fiber Optic Splice Closure (FOSC) is a rugged, sealed housing that protects optical fiber splices from environmental hazards while allowing organized cable entry, splicing, and future access.

Core Functions of FOSC

1. Perlindungan Alam Sekitar: IP68-rated sealing against water, dust, UV, and temperature extremes (–40°C to +85°C).
2. Mechanical Protection: Resistance to impact, compression, and tension.
3. Splice Organization: Trays for fusion or mechanical splices (24–576 fibers typical).
4. Cable Management: Strain relief, grounding, and bend radius control.
5. Re-enterability: Tool-less or simple re-entry for upgrades/maintenance.

FOSC are essential in every fiber network segment: aerial, underground, manhole, pedestal, direct-buried, or facade-mounted.

Without proper FOSC, moisture ingress causes hydrogen darkening, rodents chew fibers, and pressure crushes splices — resulting in millions in annual repair costs worldwide.

The Evolution of FOSC: From Early Designs to 2025 Innovations

Early FOSC (1980s–1990s) were simple heat-shrink sleeves or basic inline boxes. The 2000s introduced dome-style closures for aerial use, while horizontal designs dominated underground.

By 2010–2020, pre-terminated and plug-and-play concepts emerged, culminating in the rise of MST Boxes (Multiport Service Terminals) — a revolutionary FOSC variant that eliminates field splicing entirely.

In 2025, FOSC technology incorporates:

• Gel-free sealing
• Integrated splitters
• Smart monitoring (humidity/temperature sensors)
• Higher capacities (up to 864 fibers)
• Sustainable materials

Major Types of FOSC: Classification and Overview

FOSC are broadly classified by design, mounting, and functionality.

3.1 By Physical Design

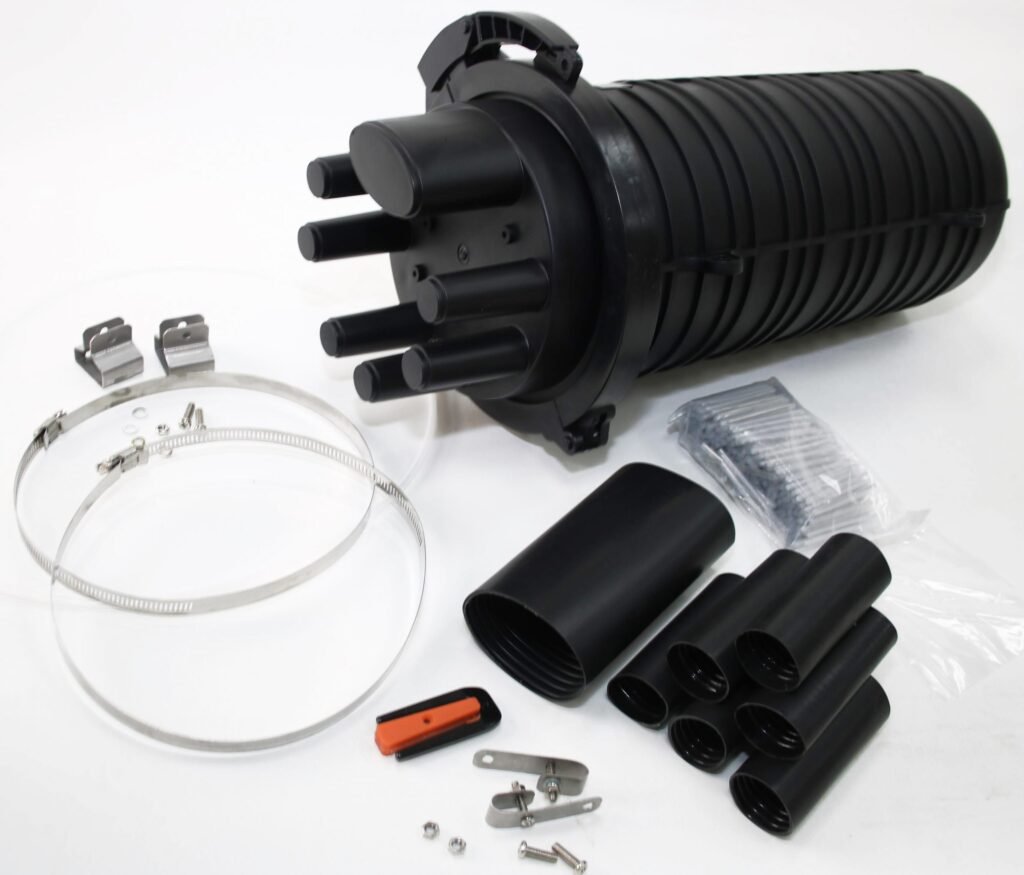

3.1.1 Dome/Vertical Type FOSC

• Also called dome closure, dome type closure, dome splice closure, fiber dome closure, dome fiber optic splice closure
• Vertical cylindrical shape with domed end cap
• Single-end cable entry (bottom)
• Capacities: 24–576 fibers
• Ideal for aerial, pole, and manhole

3.1.2 Horizontal/Inline Type FOSC

• Also called horizontal fiber optic splice closure, horizontal junction closure, horizontal enclosure
• Clamshell inline design
• Cable entries on both ends
• Capacities: 24–288 fibers
• Ideal for direct-buried and underground

3.2 By Mounting Method

• Aerial/strand-mounted
• Pole-mounted
• Wall/facade-mounted
• Pedestal/handhole
• Langsung dikebumikan

3.3 By Functionality

• Splice-only
• With integrated splitter (for PON)
• Pre-terminated (MST Boxes)

In-Depth Comparison: Dome Type vs Horizontal Type FOSC

4.1 Design and Structure

Dome Type Splice Closures:

• Cylindrical body + domed cap
• Sealed with clamp ring and O-ring
• Cable ports at base (1 oval + 4–8 round)
• Internal basket with stacked trays

Horizontal Splicing Enclosures:

• Long rectangular clamshell
• Sealed with gasket and bolts/latches
• Ports on both ends
• Trays arranged side-by-side or hinged

4.2 Sealing and Environmental Performance

Dome Type:

• Fewer seal points → lower failure risk
• Dome shape distributes pressure evenly
• Superior in flooded manholes

Horizontal Type:

• Longer gasket → more potential leak points
• Excellent for direct-buried compression

Both achieve IP68, but dome closures often excel in water head tests (10 m for 30 days).

4.3 Capacity and Fiber Management

Dome Type:

• Higher capacity (up to 576–864 fibers)
• Stacked trays allow compact high-density

Horizontal Type:

• Typically 144–288 fibers
• Easier mid-span access

4.4 Installation and Re-entry

Dome Type:

• Fast clamp re-entry (5–10 minutes)
• Vertical orientation simplifies aerial work

Horizontal Type:

• Inline entry perfect for buried mid-span
• Bolt tightening takes longer

4.5 Applications

Dome Type Splice Closures:

• udara FTTH distribution
• High-density feeder nodes
• Manholes in flood-prone areas

Horizontal Splicing Enclosures:

• Direct-buried trunk routes
• Underground vaults
• Mid-span splicing

4.6 Cost Comparison (2025)

Dome closures have a 10–20% premium but higher capacity per dollar.

The Revolutionary Evolution: MST Boxes as Next-Gen FOSC

While traditional dome and horizontal FOSC rely on field splicing, the latest innovation is the Kotak MST (Multiport Service Terminal) — a pre-terminated FOSC variant that is rapidly replacing splicing in FTTH last-mile.

5.1 What Is an MST Box?

An MST Box is a hardened, multi-port FOSC with factory-installed hardened connectors (OptiTap, Mini-SC, etc.) instead of splice trays.

Key features:

• 4–24 output ports (pre-connectorized)
• Input: stubbed cable or splice-in
• No field splicing required
• Plug-and-play drop connections

5.2 Why MST Boxes Are Taking Over in 2025

Real-world savings: 35–50% lower installed cost, 70% faster activation.

5.3 CommMesh’s Latest MST Boxes (2025 Flagship)

CommMesh’s MST Product:

• 4–24 ports
• ≤0.25 dB insertion loss per port
• IP68 + IK10
• Integrated RFID tracking
• Compatible with OptiTap, Mini-SC, full SC/APC
• Stub lengths up to 500 m

These are the most advanced FOSC solutions available today.

Choosing the Right FOSC for Your Project

Conclusion: The Future Is Pre-Terminated

Traditional Dome Type Splice Closures dan horizontal splicing enclosures remain essential for backbone and high-count splicing.

But for modern FTTH and 5G last-mile, MST Boxes — the evolved FOSC — deliver unmatched speed, reliability, and cost savings.

CommMesh leads this transition with the industry’s most innovative MST and traditional FOSC portfolio.

Ready to future-proof your network? Contact CommMesh for the latest MST Box samples or customized FOSC solutions.
