OS1 vs. OS2 Fiber Optic Cables: A Complete Comparison

Picture OS1 vs OS2 as two skilled architects—one designing a cozy office retreat, the other a sprawling urban expanse. These labels categorize single mode fiber optic cables under the ISO/IEC 11801 standard, each engineered to transmit data as light pulses through an 8-10 micron core. OS1 and OS2 differ in their reach, durability, and intended use, making the choice between them a practical one—whether you need a cable for a short indoor connection or a robust outdoor link spanning dozens of kilometers. Your decision hinges on factors like distance, environmental conditions, and budget, all of which shape the network’s efficiency and longevity.

This in-depth guide explores OS1 vs OS2, detailing their specifications, deployment scenarios, costs, and more to help you select the best single mode fiber for your project. We’ll unpack technical nuances, real-world applications, and integration tips, spotlighting CommMesh’s high-quality options. Whether you’re wiring a small office or a vast telecom grid, you’ll find the clarity needed to choose wisely—OS1 for precision in tight spaces or OS2 for power over long stretches. Let’s dive into the details and map out your perfect cable solution!

Defining OS1 vs OS2: Core Characteristics

Các OS1 vs OS2 distinction begins with their fundamental traits, both built on the ITU’s G652D standard for single mode fibers.

OS1 Core Characteristics

• Sự định nghĩa: OS1 is a single mode fiber optimized for indoor environments or short outdoor runs, emphasizing controlled settings with specific performance limits.

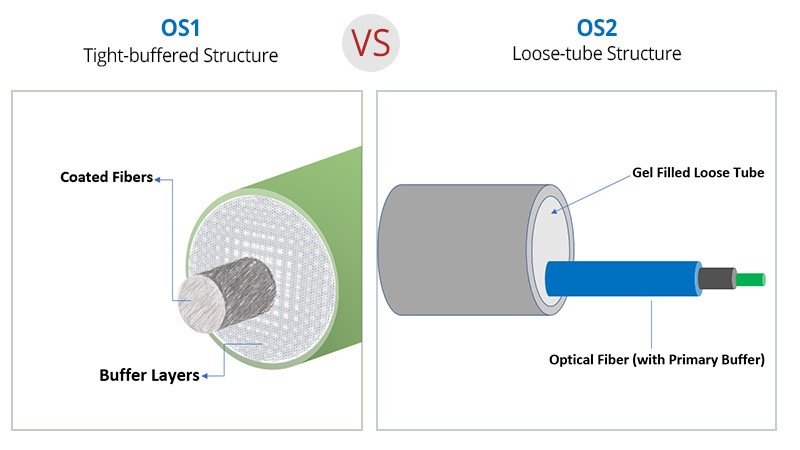

• Thông số kỹ thuật: Features an 8-10 micron core, 125 micron cladding, and a maximum attenuation of 1.0 dB/km at 1310 nm and 1550 nm wavelengths. It’s typically tight-buffered, providing a protective layer around the fiber for easier handling indoors.
• Purpose: Designed for spans up to 10 km, OS1 is common in structured cabling systems where shorter distances and stable conditions prevail, such as within buildings or between nearby structures.
• Chi tiết: Its construction prioritizes flexibility and simplicity, often paired with connectors like SC hoặc LC, and it’s less focused on environmental resilience compared to its OS2 counterpart.

OS2 Core Characteristics

• Sự định nghĩa: OS2 is an enhanced single mode fiber tailored for longer outdoor applications, offering superior attenuation and durability.
• Thông số kỹ thuật: Shares the same 8-10 micron core and 125 micron cladding but limits attenuation to 0.4 dB/km at 1310 nm and 1550 nm. It typically uses a loose-tube design, where fibers float within a protective tube to withstand external pressures.
• Purpose: Built for distances exceeding 40 km, OS2 serves telecom networks, FTTH deployments, and metropolitan links, excelling in challenging outdoor environments.
• Chi tiết: The loose-tube structure often includes water-blocking compounds or gel, enhancing resistance to moisture and temperature fluctuations—key for aerial or buried installations.

CommMesh supplies OS1 for compact precision and OS2 for extended robustness—both rooted in G652D quality.

Distance Capabilities of OS1 vs OS2

Distance is a critical differentiator in OS1 vs OS2, dictating how far your signal can travel before needing support.

OS1 Distance Limits

• Phạm vi: Effective up to 10 km at 10G—its 1.0 dB/km attenuation caps reach without additional equipment.
• Chi tiết: Suited for shorter connections like campus networks or intra-city data centers, OS1 maintains signal integrity within this range. Beyond 10 km, signal loss accumulates (e.g., 10 dB total at 10 km), requiring amplifiers or repeaters, which add cost and complexity. It’s optimized for 1310 nm or 1550 nm operation, common in enterprise-grade equipment.
• Ví dụ: A 5 km link between two office buildings in a business park—OS1 delivers reliably without overkill.

OS2 Distance Advantages

• Phạm vi: Reaches 40 km or more at 10G—0.4 dB/km loss ensures signal strength over vast spans.
• Chi tiết: Ideal for metropolitan or rural telecom networks, OS2 minimizes the need for intermediate boosts (e.g., only 16 dB loss at 40 km), reducing infrastructure costs. It’s designed for long-haul applications, supporting high-capacity links with fewer interruptions, and performs consistently at 1310 nm and 1550 nm wavelengths.
• Ví dụ: A 35 km fiber run connecting a small town to a central exchange—OS2 keeps data flowing with minimal intervention.

OS1 handles local hops, while OS2 spans wide gaps. CommMesh offers both for your distance needs.

Environmental Suitability in OS1 vs OS2

Where OS1 vs OS2 cables operate—indoors or outdoors—shapes their design and performance.

OS1 Indoor Focus

• Suitability: Primarily for indoor use—tight-buffered construction protects in stable environments.
• Chi tiết: OS1 thrives in offices, data centers, or short outdoor runs with conduit protection. It’s not built for prolonged exposure to moisture, UV rays, or extreme temperatures (e.g., -20°C to 70°C indoors vs. wider outdoor ranges). The tight buffer adds a layer of plastic directly over the fiber, making it easier to route through walls or trays.
• Use Case: Connecting floors in a 10-story office building—OS1 fits the controlled setting perfectly.

OS2 Outdoor Resilience

• Suitability: Optimized for outdoor durability—loose-tube design withstands harsh conditions.
• Chi tiết: OS2 is deployed in aerial cables, underground ducts, or direct-buried setups, resisting water ingress (often with gel-filled tubes), temperature swings (-40°C to 85°C), and physical stress. The loose-tube structure allows fibers to move slightly, reducing strain from bending or pulling during installation or environmental shifts.
• Use Case: A 20 km aerial link between utility poles in a rural area—OS2 endures wind, rain, and sun.

OS1 excels in cozy interiors—OS2 braves the wild outdoors. CommMesh builds both for their domains.

Bandwidth and Speed in OS1 vs OS2

Bandwidth and speed capabilities of OS1 vs OS2 determine their data-handling prowess—both are single mode, but distance impacts performance.

OS1 Bandwidth Capacity

• Speed: Supports 10G, 40G, or 100G—up to 10 km at 10G due to its 1.0 dB/km attenuation.
• Chi tiết: OS1 delivers high bandwidth for short runs, using standard wavelengths (1310 nm for shorter links, 1550 nm for slightly longer ones). Beyond 10 km, signal degradation limits speed without amplification—e.g., at 15 km, loss exceeds 15 dB, pushing equipment limits.
• Limit: Fine for enterprise networks but constrained by reach.

OS2 Bandwidth Strength

• Speed: Same 10G, 40G, 100G—but sustains 10G over 40 km+ with 0.4 dB/km loss.
• Chi tiết: OS2 maintains bandwidth over longer distances, making it ideal for telecom or FTTH where high-speed data must travel far—e.g., only 16 dB loss at 40 km, well within transceiver tolerances. It’s equally effective at 1310 nm and 1550 nm, offering flexibility for DWDM (dense wavelength division multiplexing) systems.
• Edge: Extends high-capacity performance without extra hardware.

Both cables carry speed—OS2 takes it farther. CommMesh ensures top bandwidth for any span.

Cost Considerations for OS1 vs OS2

Các OS1 vs OS2 price reflects their capabilities—economy vs. enhanced performance.

OS1 Pricing Breakdown

• Phạm vi: $0.05-$0.10 per meter—lower cost for shorter, simpler applications.
• Tại sao: Tight-buffered design and higher attenuation tolerance (1.0 dB/km) reduce production demands—less focus on ultra-low loss or ruggedness.
• Chi tiết: A 5 km OS1 run costs $250-$500, plus connectors (e.g., SC at $2-$5 each) and splicing labor (e.g., $10-$20 per splice). It’s a budget-friendly choice for indoor or protected short runs, avoiding the need for extensive environmental shielding.
• Phù hợp: Cost-effective for campus or office links.

OS2 Pricing Breakdown

• Phạm vi: $0.08-$0.15 per meter—higher for superior specs and durability.
• Tại sao: Loose-tube construction, lower loss (0.4 dB/km), and weatherproofing (e.g., gel or tape) increase material and manufacturing costs—built for long-term reliability.
• Chi tiết: A 20 km OS2 run ranges from $1,600-$3,000—factor in connectors (e.g., LC at $5-$10 per pair) and more splices (e.g., $15-$25 each due to length). It’s an investment for long-haul or outdoor setups where performance trumps initial cost.
• Phù hợp: It’s worth it for telecom or FTTH networks.

Deployment Challenges of OS1 vs OS2

Installing OS1 vs OS2 cables presents unique hurdles tied to their construction and intended use.

OS1 Deployment Ease

• Challenges: Minimal—tight-buffered cables are flexible and user-friendly indoors.
• Chi tiết: Terminated with connectors like SC or LC (e.g., $2-$5 each), tested with an OTDR for 1.0 dB/km loss—quick setup with standard tools like cleavers and splicers (e.g., fusion splicing at $10-$20 per joint). It’s routed through trays or conduits with ease, needing only basic protection against sharp bends (30 mm minimum radius).
• Focus: Fast deployment in stable, short-run environments.

OS2 Deployment Complexity

• Challenges: More involved—loose-tube requires careful handling, especially outdoors.
• Chi tiết: Needs sleeving or conduit for aerial/buried runs, OTDR testing for 0.4 dB/km loss—more splice points (e.g., $15-$25 each) over long distances demand precision to maintain low loss. Environmental factors like moisture (blocked by gel) or tension (e.g., 1000 N pull strength) add steps—installers must secure cables against wind or soil shifts.
• Focus: Durability and signal quality over extended spans.

OS1 sets up quickly—OS2 demands diligence.

Strengths and Weaknesses of OS1 vs OS2

Các OS1 vs OS2 pros and cons outline their practical trade-offs in real-world use.

OS1 Strengths and Weaknesses

• Strengths: Affordable ($0.05-$0.10/m), simple indoor installation—cost-effective for short distances.
• Weaknesses: Higher 1.0 dB/km loss limits reach to 10 km—not rugged for outdoor exposure (e.g., lacks water-blocking gel).
• Chi tiết: Great for office wiring or campus links—e.g., a 3 km university network—but falters in long or harsh setups needing lower loss or weather resistance.

OS2 Strengths and Weaknesses

• Strengths: Low 0.4 dB/km loss, 40 km+ reach, outdoor durability—high performance for expansive networks.
• Weaknesses: Pricier ($0.08-$0.15/m), complex install—unnecessary for short indoor runs (e.g., 1 km office link).
• Chi tiết: Ideal for telecom grids or FTTH—e.g., a 25 km rural connection—but overkill for small, controlled environments.

Quick Reference: OS1 vs OS2 at a Glance

Here’s an OS1 vs OS2 overview for instant insight:

Your decision tool—aligns with your scope.

Why OS1 vs OS2 Matters for Your Network

Lựa chọn giữa OS1 và OS2 trực tiếp ảnh hưởng đến độ tin cậy và chi phí của mạng của bạn. Một cáp OS1 kéo dài 20 km mất tín hiệu nhanh—1,0 dB/km tăng tổng cộng 20 dB, vượt quá hầu hết các giới hạn thu phát (ví dụ: tối đa 17 dB), buộc phải sử dụng bộ lặp hoặc mất điện tốn kém. Một OS2 trong liên kết văn phòng dài 2 km lãng phí tiềm năng—lợi thế 0,4 dB/km của nó không hoạt động, làm tăng chi phí mà không có lợi ích. Cáp phù hợp—OS1 cho hiệu suất trong nhà ngắn, OS2 cho sức mạnh ngoài trời dài—đảm bảo tín hiệu rõ ràng, ngân sách được kiểm soát và không gian để phát triển. Đó là xương sống của mạng của bạn—đánh giá sai nó, và bạn sẽ phải vá các sự cố sau này.

CommMesh cung cấp so sánh sợi quang đơn mode nổi bật—OS1 từ $0.05/m cho các thiết lập chặt chẽ, OS2 từ $0.08/m cho các mạng lưới rộng khắp, tất cả đều được chứng nhận FC và giao hàng trong 7 ngày. Cho dù bạn đang rèn best single mode fiber giải pháp hoặc mở rộng phạm vi tiếp cận của bạn, hãy truy cập Mạng lưới giao tiếp để bảo vệ dữ liệu của bạn. Giữ dữ liệu của bạn ổn định—dù gần hay xa, chúng tôi đều có cáp để thực hiện!
